Replacement cover parts for the external of standard grey double glazed Velux Roof Windows
7 pc Velux cover part screws.
The Vent casing is the top hood section, this is number 6 in the instructions.

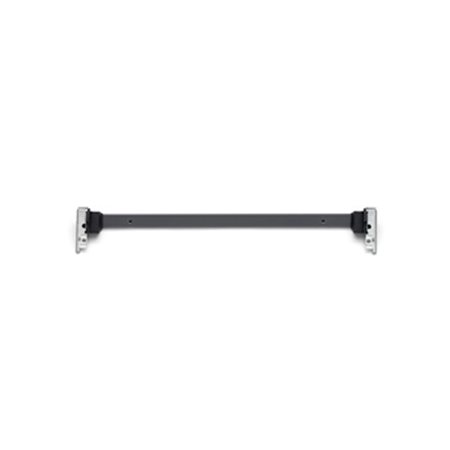

The bottom frame cover is number 2 of the Bei pack 2, this holds the lead flashing at the bottom of the window, newer models have two rubber fittings at the end.
Frame striking bead Left Hand as viewed from inside, number 5 in the installation instructions.
Frame striking bead Right Hand as viewed from inside, number 5 in the installation instructions.
Side frame cover Left Hand as viewed from inside, number 4 in the installation instructions. NOTE: 2014 onwards will come as a pair!
Side Frame cover Right Hand as viewed from inside, this is number 4 from the installation instructions. NOTE: 2014 onwards will come as a pair!
Sash striking bead cover, Left hand as viewed from inside, this will come attached to the sash part of the window when bought new.
Sash striking bead cover, Right hand as viewed from inside, this will come attached to the sash part of the window when bought new.

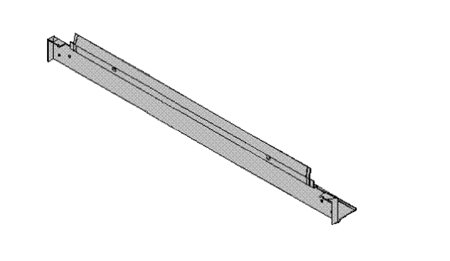

Velux trim part - cover over glass, Velux drawing position 2551. Not for triple glazed windows.

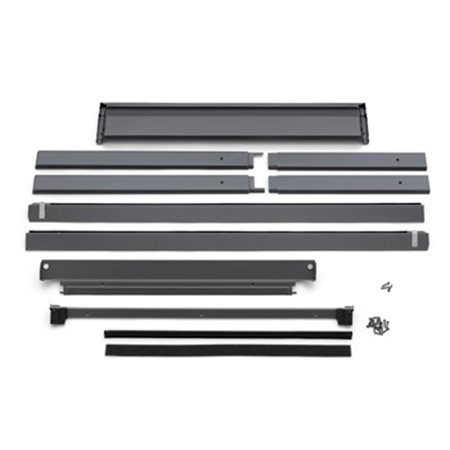

Velux complete cover part set, all the external cover parts in one kit! for VELUX GGL/GGU windows 2001 onwards.

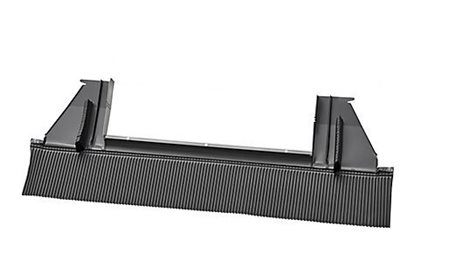

Velux Front apron for tile flashing kit EDW in grey, part number 1 on the instructions.

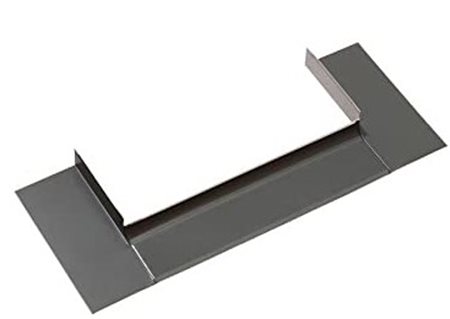

Velux Front apron for slate flashing kit EDL in grey, part number 1 on the instructions.
Velux ZZZ 166 Flashing apron - 4m length.

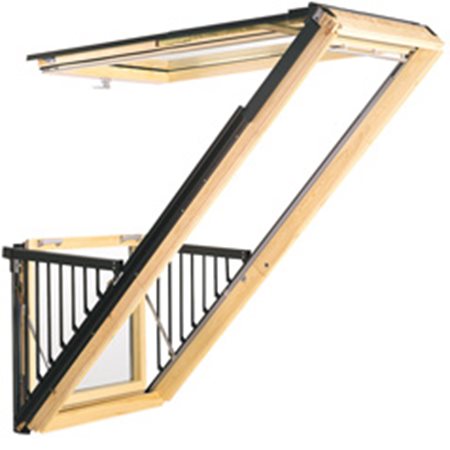

Velux GDL Cabrio balcony side rail pack. Comes with handrail and metal balustrading, these are not handed and you will need two per window.
For standard installation of roof windows into slate up to 8mm thick. Not for interlocking slate. Suitable for 15°-90° roof pitches.
For standard installation of windows in flat or profiled roofing up to 120mm in profile. Also for interlocking slate, thatch and profiled sheeting. Suitable for 15°-90° roof pitches.
For standard installation of roof windows in plain tiles (max length 340mm) Maximum tile thickness of 15mm. Suitable for 25°-90° roof pitches.
